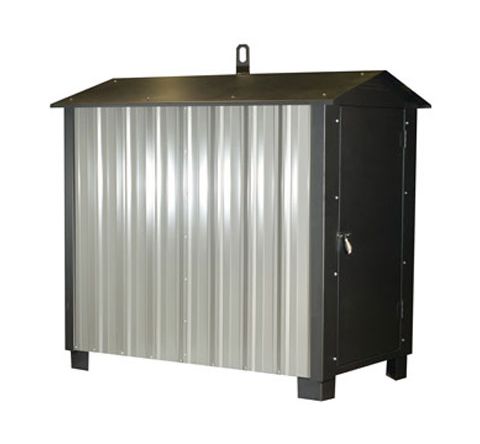

Royall Outdoor Forced Air Furnace - 150000 BTU - 9150
Almost never undersold. If you find a better price email us their quote and we'll likely beat it.
From workmanship to design, A Royall Furnace offers the best value available in the marketplace. Our formula for achieving successful results is simple:
• QUALITY - Products for years of service
• VALUE - Products at a fair price
• SERVICE - Experienced support
• DESIGN - Innovative and resourceful
Specifications
OUTDOOR WOOD FURNACE MODEL:9150
DIMENSIONS: WxLxH44" x 59" x 64"
Estimated BTU:150,000
DOOR SIZE (FUEL):10" x 14"
DOOR SIZE (ASH):5" x 7"
FLUE SIZE:8"
APPROX DRY WEIGHT:695 lbs.
LOG LENGTH:26"
FIRE BOX CAPACITY:7.4 cubic ft.
Furnace Includes (as of 2013)
Part Number BL60: 50 cfm INDUCTION FAN
Part Number DRHR4: FUEL DOOR 10 X 14
Part Number DRHR5: ASH DOOR 5 X 7
Part Number ASHPAN1: ASH PAN
Part Number FB491141: FIRE BRICK 9'' X 4.5'' X 1.5''
Part Number GRHR6: T-BAR
Part Number GRHR7: LARGE FRONT BAFFLE
Part Number GRHR14: FRONT GRATE
Part Number GRHR15: REAR GRATE
Part Number GRHR13: ROCKER GRATE
Part Number GRHR8: S-HOOK ROCKER CONNECTOR
Part Number ROCKERBAR1: ROCKER BAR
Part Number SHAKER HANDLE: SHAKER HANDLE
Part Number DAMPERROD1: DAMPER ROD
Part Number GASK58: FUEL DOOR GASKET ROPE
Part Number GASK58: ASH PAN GASKET ROPE
Part Number GASKBL: DRAFT BLOWER GASKET
Part Number FS5D51035: FAN LIMIT CONTROL
Part Number FS90113: CONTROL CENTER
Part Number CIRCBLOWER: 3 SPEED CIRCULATION BLOWER
Part Number FILBOX: FILTER BOX
Part Number HA001: CHROME SPRING HANDLE
Click to see Royall Forced Air Furnace Manual
Click to see Royall Forced Air Maintenance Information
Click to see Royall Forced Air Warranty Information
California residents please click on the link for information on Proposition 65 BEFORE purchasing.
