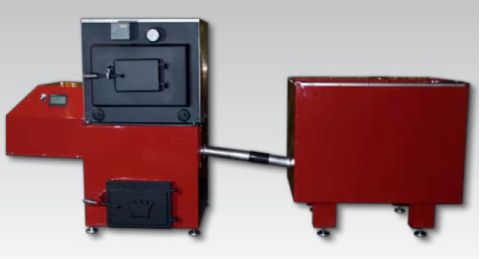

Royall Coal Stoker/Boiler - 4150

No Stock Currently Available
4150-Royall
Royall Coal Stoker/Boiler - 4150

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

***All boilers have a 4-week lead time***

From workmanship to design, A Royall Furnace offers the best value available in the marketplace. Our formula for achieving successful results is simple:
• QUALITY - Products for years of service
• VALUE - Products at a fair price
• SERVICE - Experienced support
• DESIGN - Innovative and resourceful

Specifications

Boiler
- Construction: 1/4" and 5/16" A36 ASTM Certified Steel
- Welding: Completed by ASME Certified Welders
- Certification: ASME Inspected and Certified
- Water Capacity: 16.5 U.S. Gallons
- Dry Weight: 405 lbs.
- Dimensions: (WxLxH) 27 x 27 x 24 inches

Stoker
- Construction: A36 Hot Rolled Steel (varying thicknesses)
- Welding: Completed by ASME Certified Welders
- Feed System: 1 1/2" Diameter 10 Ga (.135") Auger, Bottom Feed Fire Pot, AC Induction Drive Gear Motor (Speed Adjustable)
- Induction Fan: 549 CFM Squirrel Cage Blower, Adjustable Damping System
- Dry Weight: 105 lbs.

Boiler Base
- Construction: A36 Hot Rolled Steel (varying thicknesses)
- Welding: Completed by ASME Certified Welders
- Feet: 1/2" Threaded Adjustable Leveling
- Ash Door: Cast Iron w/ Royall Trademark Crown
- Dry Weight: 255 lbs.
- Dimensions: (WxLxH) 27 x 30 x 26 inches

Hopper
- Construction: 16 Ga (.062") 304 Stainless Liner, 16 Ga. (.062") Powder Coated Steel Outer
- Welding: Completed by ASME Certified Welders
- Feet: 1/2" Threaded Adjustable Leveling
- Coal Capacity (Rice Coal): Approximately 600 lbs.
- Dry Weight: 205 lbs.
- Dimensions: (WxLxH) 30 x 38 x 26 inches

Entire Unit
- Foot Print: (WxLxH) 108 x 33 x 50 inches
- Dry Weight: Approximately 1050 lbs.
- Auger Speed: PLC Controlled Auger Speed (2-24 lbs./hour)
- Draft Air Flow: PLC Damper Controlled (10-549 CFM)
- Firepot Temperature: Monitored with Kyence Temperature Sensor
- Ash Removal: Manual Ashpan (Daily)
- Coal Fines Removal: Manual Lever (Daily)

Click to see Royall Coal Stoker Brochure

Click to see Royall Boiler Maintenance Information

Click to see Royall Boilers Warranty Information
