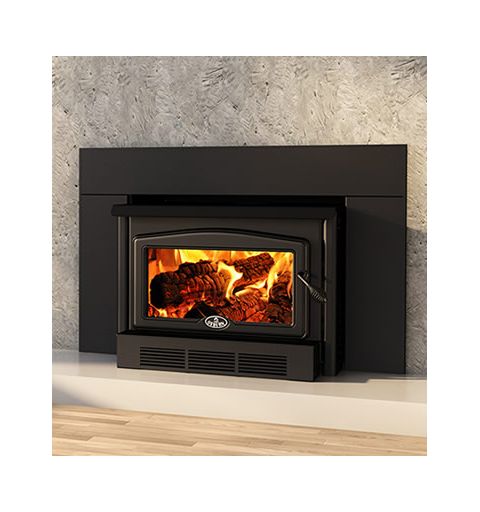

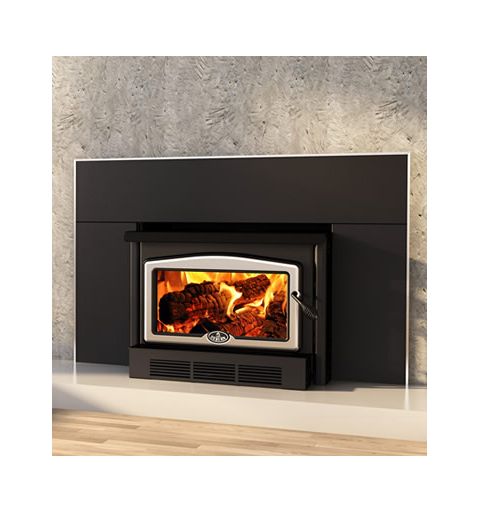

Osburn 2400 Wood Insert with Blower - OB02401
Please call us at 1-888-418-0005 for any offers currently running!
The 2400 insert has the same firebox as its freestanding counterpart, and will transform any conventional decorative fireplace into a highly efficient heating system. Its 100,000 BTU/hr, combined with a 3.2 cubic foot firebox, will help you to rest easy during those long winter nights, and its large glass window offers a perfect view of the fire.
Osburn 2400 Insert Features:
Model # : OB02401
Combustion technology: Non-catalytic
High-efficiency EPA certified appliance: Yes
Maximum log length: 21''
Log positioning: Over width
Chimney diameter: 6"
Flue outlet diameter: 6''
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet): 12'
Baffle type: C-Cast
Approved for an alcove installation: N.A.
Approved for a mobile home installation: No
Shipping Weight: 512 lb (232 kg)
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 19 1/8'' X 8 7/8''
Glass air-wash system: Yes
Premium quality blower included (CFM): 144
Overall dimension (Height): 23''
Overall dimension (Width): 31 1/8''
Overall dimension (Depth): 28''
Door opening – dimension (Height): 8''
Door opening - dimension (Width): 19 1/2''
Firebox – dimension (Height): 13 1/2''
Firebox – dimension (Width): 22 1/2''
Firebox – dimension (Depth): 19 3/8''
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: Yes
Steel thickness – body: 3/16"
Steel thickness – top: 5/16"
Fireplace opening – minimum (Height): 23 1/2"
Fireplace opening – minimum (Width): 31 5/8"
Fireplace opening – minimum (Depth): 16 1/4"
USA standard (emissions): EPA Method 28
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime
Click to see the Osburn 2400 Insert Owners Manual
California residents please click on the link for information on Proposition 65 BEFORE purchasing.
Please call us at 1-888-418-0005 for any offers currently running!
The 2400 insert has the same firebox as its freestanding counterpart, and will transform any conventional decorative fireplace into a highly efficient heating system. Its 100,000 BTU/hr, combined with a 3.2 cubic foot firebox, will help you to rest easy during those long winter nights, and its large glass window offers a perfect view of the fire.
Osburn 2400 Insert Features:
Model # : OB02401
Combustion technology: Non-catalytic
High-efficiency EPA certified appliance: Yes
Maximum log length: 21''
Log positioning: Over width
Chimney diameter: 6"
Flue outlet diameter: 6''
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet): 12'
Baffle type: C-Cast
Approved for an alcove installation: N.A.
Approved for a mobile home installation: No
Shipping Weight: 512 lb (232 kg)
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 19 1/8'' X 8 7/8''
Glass air-wash system: Yes
Premium quality blower included (CFM): 144
Overall dimension (Height): 23''
Overall dimension (Width): 31 1/8''
Overall dimension (Depth): 28''
Door opening – dimension (Height): 8''
Door opening - dimension (Width): 19 1/2''
Firebox – dimension (Height): 13 1/2''
Firebox – dimension (Width): 22 1/2''
Firebox – dimension (Depth): 19 3/8''
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: Yes
Steel thickness – body: 3/16"
Steel thickness – top: 5/16"
Fireplace opening – minimum (Height): 23 1/2"
Fireplace opening – minimum (Width): 31 5/8"
Fireplace opening – minimum (Depth): 16 1/4"
USA standard (emissions): EPA Method 28
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime
Click to see the Osburn 2400 Insert Owners ManualCalifornia residents please click on the link for information on Proposition 65 BEFORE purchasing.
