Osburn 1700 Wood Insert | OB01705

Osburn 1700 Wood Insert | Model OB01705

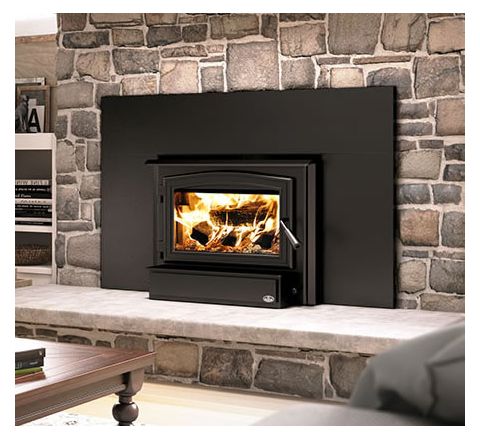

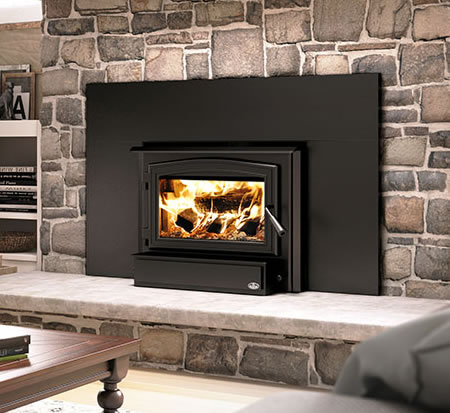

The Osburn 1700-I OB01705 offers a practical path to converting a modest masonry fireplace into a more effective supplemental heater. Sized below the 2000-series insert, it retains a traditional cast iron door and a welcoming glass view suited to medium-size living areas and smaller hearth installations.

High-density firebrick, a C-Cast baffle and a blower help support durable everyday operation and move warmed air back into the room. Buyers can choose among compatible faceplates, trims and door-overlay finishes to create a clean transition between the insert and existing masonry.

Why the Osburn 1700-I Suits Smaller Hearths

The 1700-I is a logical step up from an open masonry fireplace when the goal is to heat an everyday living area without buying a large insert. Its 1.86-cubic-foot firebox is smaller than the Osburn 2000-I's 2.4-cubic-foot unit, so it is worth considering when fireplace dimensions or heat demand rule out a larger model. A cast iron door, ceramic glass window and included blower retain the familiar appearance of a wood fire while directing more warmth into the occupied room.

Take the time to measure the masonry fireplace opening and the depth available for the insert body. Check the hearth extension, faceplate coverage and 6-inch liner path in the manual before assuming the unit will work. Door overlay and trim options can help match the existing room, but they do not change the firebox's certified opening or clearance requirements. This insert is designed for approved masonry fireplaces and must not be treated as a wood stove for a combustible enclosure.

Why Choose the Osburn 1700 Wood Insert?

• Medium-size 1.86 cu. ft. firebox
• Included quiet blower for room air circulation
• Cast iron door, high-density firebrick and C-Cast baffle
• Multiple faceplate and door-overlay options
• Non-catalytic EPA-certified performance

Osburn 1700 Wood Insert Specifications

• Manufacturer model: OB01705
• Manufacturer-recommended heating area: 500-1,800 sq. ft.
• Fuel: Dry cordwood (manufacturer recommends 16" pieces)
• Maximum heat output using dry cordwood: 65,000 BTU/h
• Tested overall heat output range: 9,800-52,200 BTU/h
• Maximum published burn time: Up to 7 hours
• Overall firebox volume: 1.86 cu. ft.
• EPA test loading volume: 1.44 cu. ft.
• Maximum log length: 18"
• Average overall efficiency (HHV): 68%
• Average overall efficiency (LHV): 73%
• Optimum overall efficiency: 76%
• Average particulate emissions: 2.4 g/h
• Overall dimensions (W x H x D): 27 1/8" x 21 1/4" x 22 3/8"
• Minimum fireplace opening (W x H x D): 27 1/2" x 21 1/2" x 12 7/8"
• Firebox interior dimensions (W x H x D): 19 5/8" x 11 7/8" x 13 1/2"
• Viewing glass size (W x H): 15 3/4" x 9 3/8"
• Door construction: Single glass door, cast iron frame
• Shipping weight: 361 lb
• Flue outlet diameter: 6"
• Manufacturer minimum chimney height: 15 ft; verify complete installation requirements
• Blower: Included 144 CFM
• Mobile home approval: No
• Combustion technology: Non-catalytic
• EPA listing: EPA 2020 approved (per manufacturer Specs/Manual)
• Manufacturer warranty: Limited lifetime; see written warranty for terms

Manufacturer figures are reference values, not guaranteed heating results. Maximum BTU output, tested output rates and burn-time estimates use different conditions; real performance depends on fuel quality, chimney draft, climate, home heat loss and operating settings. Confirm all dimensions and listed installation clearances in the current manual before ordering.

Installation and Compatibility

Install the 1700-I only in a suitable existing masonry fireplace with a listed 6-inch liner. Check opening depth, height, width and hearth protection rather than relying on appearance alone to determine fit.

Important: Wood-burning inserts must be installed only in a compatible existing masonry fireplace, in accordance with the manufacturer's listing and installation instructions.

Frequently Asked Questions

Is the 1700-I smaller than the 2000-I?

Yes. Its 1.86-cubic-foot firebox is smaller than the 2000-I's 2.4 cubic feet, and Osburn recommends it for approximately 500 to 1,800 square feet depending on the home.

Does the Osburn 1700-I include a blower?

Yes. Osburn lists a 144 CFM blower to help circulate heated air into the room.

Will it fit my existing brick fireplace?

Possibly, but only actual measurements can answer that. Confirm opening width, height, depth, mantel clearances, hearth protection and liner suitability against the current installation diagrams.

Osburn Manuals and PDF Resources

• Osburn 1700-I Wood Insert Owner's Manual (PDF)

Questions about fireplace fit, venting or compatible accessories? Contact WoodStovePro at info@woodstovepro.com or 888-418-0005 before placing your order.

California residents: Review Proposition 65 information before purchasing.
