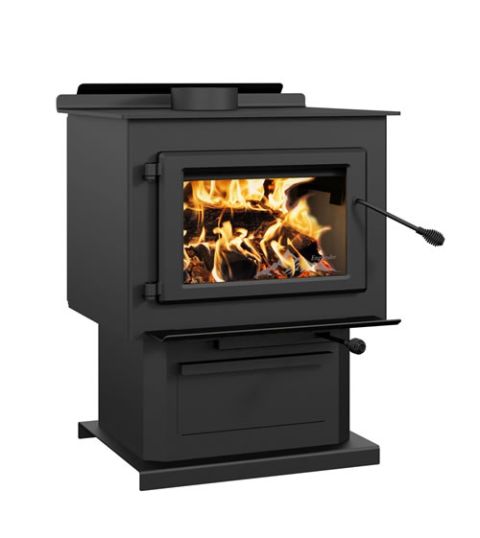

Englander Blue Ridge 300P Wood Stove - SKU: ESW0007

Description
High efficiency 2.4 cubic feet firebox
Up to 8 hours burn time
Steel top reinforced with a stainless steel heat shield
Cast iron door and ceramic glass
EPA certified
Proudly made in USA
Non-catalytic combustion system
Certified for mobile home and alcove installation
Qualifies for the 30% US tax credit
Included: pedestal, ash drawer and lip, air intake damper and rear air deflector

Specifications
Fuel type: Dry cordwood (16" recommended)
Recommended heating area: 500 - 2,100 ft²
Overall firebox volume: 2.4 ft³
EPA loading volume: 1.95 ft³
Maximum burn time: 8 h
Maximum heat output-dry cordwood: 75,000 BTU/h (22 kW)
Minimum overall heat output rate: 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate: 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV): 72 %
Average overall efficiency-dry cordwood (LHV): 77 %
Optimum efficiency: 79 %
Optimum heat transfer efficiency: 76 %
Average particulate emission rate: 2.3 g/h
Average CO: 69 g/h
Certifications: EPA-2020
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Overall dimension (Width): 25 1/2"
Overall dimension (Height): 33 1/4"
Overall dimension (Depth): 28"
Premium quality blower included (CFM): Optional
Combustion technology: Non catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 6 1/2"
Distance-center of the flue outlet to side unit: 12 3/4"
Recommended chimney diameter: 6"
Type of chimney: ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height: 12'
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/2"
Door opening size (Height): 9"
Glass type: Ceramic glass
Glass surface - W x H: 14 7/8" x 9 1/4"
Steel thickness-body: 3/16"
Steel thickness-top: 5/16"
Firebox size (Width): 21"
Firebox size (Height): 12"
Firebox size (Depth): 16 1/2"
Log positioning: Loading over width
Maximum log length: 20" oriented East-West
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): 1482, UL 737
Warranty: 5 years limited
Shipping weight: 365 lb (165 kg)

Clearances
CLEARANCE - SINGLE WALL PIPE
Back wall: 11"
Corner: 12"
Side wall: 22"

CLEARANCE - DOUBLE WALL PIPE
Back wall: 6"
Corner: 12"
Side wall: 22"
