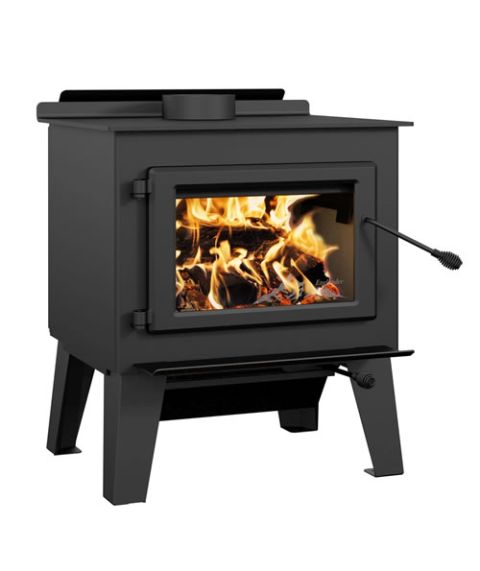

Englander Blue Ridge 300L Wood Stove - SKU: ESW0008
Description
High efficiency 2.4 cubic feet firebox
Up to 8 hours burn time
Steel top reinforced with a stainless steel heat shield
Cast iron door and ceramic glass
EPA certified
Proudly made in USA
Non-catalytic combustion system
Certified for mobile home and alcove installation
Qualifies for the 30% US tax credit
Included: legs, ash drawer and lip, air intake damper and rear air deflector
Specifications
Fuel type: Dry cordwood (16" recommended)
Recommended heating area: 500 - 2,100 ft²
Overall firebox volume: 2.4 ft³
EPA loading volume: 1.95 ft³
Maximum burn time: 8 h
Maximum heat output-dry cordwood: 75,000 BTU/h (22 kW)
Minimum overall heat output rate: 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate: 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV): 72 %
Average overall efficiency-dry cordwood (LHV): 77 %
Optimum efficiency: 79 %
Optimum heat transfer efficiency: 76 %
Average particulate emission rate: 2.3 g/h
Average CO: 69 g/h
Certifications: EPA-2020
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Overall dimension (Width): 25 1/2"
Overall dimension (Height): 30 5/8"
Overall dimension (Depth): 28"
Premium quality blower included (CFM): Optional
Combustion technology: Non catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 6 1/2"
Distance-center of the flue outlet to side unit: 12 3/4"
Recommended chimney diameter: 6"
Type of chimney: ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height: 12'
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/2"
Door opening size (Height): 9"
Glass type: Ceramic glass
Glass surface - W x H: 14 7/8" x 9 1/4"
Steel thickness-body: 3/16"
Steel thickness-top: 5/16"
Firebox size (Width): 21"
Firebox size (Height): 12"
Firebox size (Depth): 16 1/2"
Log positioning: Loading over width
Maximum log length: 20" oriented East-West
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): 1482, UL 737
Warranty: 5 years limited
Shipping weight: 365 lb (165 kg)
Clearances
CLEARANCE - SINGLE WALL PIPE
Back wall: 11"
Corner: 12"
Side wall: 22"
CLEARANCE - DOUBLE WALL PIPE
Back wall: 6"
Corner: 12"
Side wall: 22"
Click to see the Englander Wood Stove Manual (PDF)
Click to see the Englander Blue Ridge 300L Wood Stove Manual (PDF)
Click to see the Englander Blue Ridge 300L Wood Stove Dimensions (PDF)
