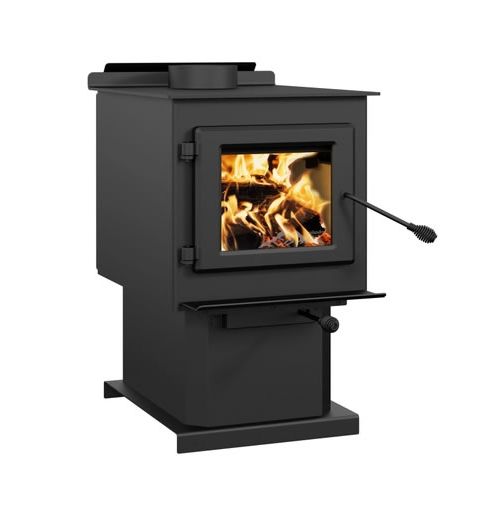

Englander Blue Ridge 100 Wood Stove - SKU: ESW0001

Englander's most compact unit in the series, the Blue Ridge 100 is the perfect choice for heating homes up to 1,200 ft². With only 1.8 g/h of particulate emissions, this EPA certified wood stove puts out an impressive 45,000 BTU/h. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently. A simple model; reliable and robust.

Included: pedestal, ash lip, air intake damper and rear air deflector

- High efficiency 1.8 ft³ firebox, ideal for tight spaces
- Up to 5 hours burn time
- Steel top reinforced with a stainless steel heat shield
- High density refractory bricks
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Certified for mobile home and alcove installation
- Qualifies for the 30% US tax credit

Specifications:
Fuel type: Dry cordwood (16" recommended)
Heating area(9): 250 - 1,200 ft²
Overall firebox volume: 1.8 ft³
EPA loading volume: 1.55 ft³
Maximum burn time(9): 5 h
Maximum heat output-dry cordwood(4): 45,000 BTU/h (13.2 kW)
Minimum overall heat output rate(4)(5): 12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4)(5): 26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6): 0.74
Average overall efficiency-dry cordwood (LHV)(5)(7): 0.79
Optimum efficiency(1)(2): 0.8
Optimum heat transfer efficiency(8): 0.79
Average particulate emission rate(3): 1.8 g/h
Average CO(10): 74 g/h
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Overall dimension (Width): 18 1/2"
Overall dimension (Height): 30 5/8"
Overall dimension (Depth): 29"
Premium quality blower included (CFM): Optional
Combustion technology: Non catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 6 5/8"
Distance-center of the flue outlet to side unit: 9 1/4"
Recommended chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 12'
Door type: Single, glass with cast iron frame
Door opening size (Width): 12"
Door opening size (Height): 7 5/8"
Glass type: Ceramic glass
Glass surface - W x H: 9 5/8" x 8 1/8"
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Firebox size (Width): 14 1/4"
Firebox size (Height): 11 3/4"
Firebox size (Depth): 19 3/8"
Log positioning: Loading over depth
Maximum log length: 17" (16" recommanded)
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): 1482, UL 737
Warranty: 5 years limited
Shipping weight: 283 lb (128 kg)
: Appliance performance
Fuel type: Dry cordwood (16" recommended)
Heating area(9): 250 - 1,200 ft²
Overall firebox volume: 1.8 ft³
EPA loading volume: 1.55 ft³
Maximum burn time(9): 5 h
Maximum heat output-dry cordwood(4): 45,000 BTU/h (13.2 kW)
Minimum overall heat output rate(4)(5): 12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4)(5): 26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6): 0.74
Average overall efficiency-dry cordwood (LHV)(5)(7): 0.79
Optimum efficiency(1)(2): 0.8
Optimum heat transfer efficiency(8): 0.79
Average particulate emission rate(3): 1.8 g/h
Average CO(10): 74 g/h
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Overall dimension (Width): 18 1/2"
Overall dimension (Height): 30 5/8"
Overall dimension (Depth): 29"
Premium quality blower included (CFM): Optional
Combustion technology: Non catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 6 5/8"
Distance-center of the flue outlet to side unit: 9 1/4"
Recommended chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 12'
Door type: Single, glass with cast iron frame
Door opening size (Width): 12"
Door opening size (Height): 7 5/8"
Glass type: Ceramic glass
Glass surface - W x H: 9 5/8" x 8 1/8"
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Firebox size (Width): 14 1/4"
Firebox size (Height): 11 3/4"
Firebox size (Depth): 19 3/8"
Log positioning: Loading over depth
Maximum log length: 17" (16" recommanded)
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): 1482, UL 737
Warranty: 5 years limited
Shipping weight: 283 lb (128 kg)

Click to see the Englander Wood Stove Manual (PDF)

Click to see the Englander Blue Ridge 100 Wood Stove Manual (PDF)

Click to see the Englander Blue Ridge 100 Wood Stove Dimensions (PDF)
