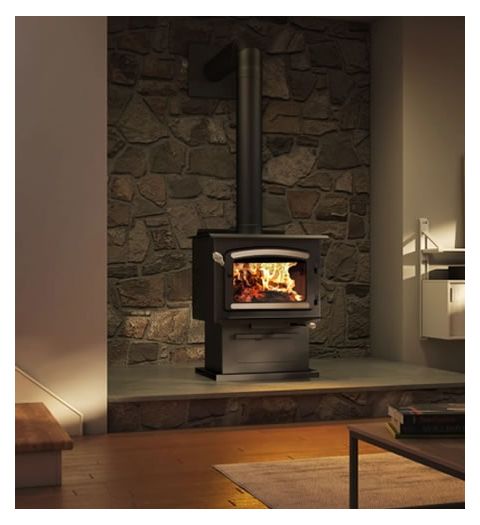

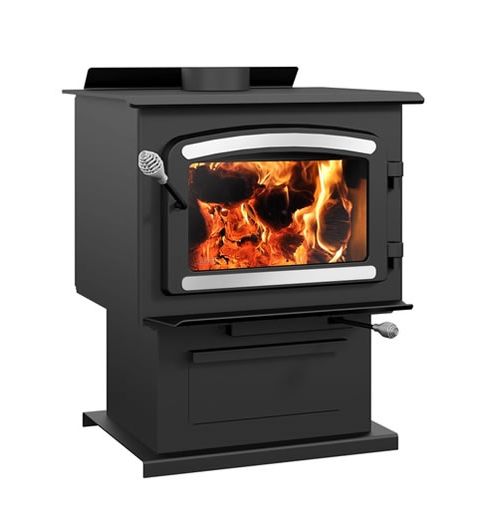

Drolet Heritage Wood Stove With Blower - DB03190

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Capable of heating an area of ​​up to 2 100 ft², the Heritage offers a maximum heat output of 75,000 BTU/h. Robust and powerful, this non-catalytic unit goes beyond environmental standards with its low particle emission rate of 2.3 g/h. Among the largest stoves available on the market, the Heritage is equipped with a large glass surface to fully enjoy the fire.

Included: pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper

- Up to 8 hours burn time
- Up to 20" logs
- 2.4 ft³ firebox
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation

Any installation must be done according to the data and drawings detailed in the owner's manual.

Performance
Fuel type: Dry cordwood (16" recommended)
Heating area(9): 500 - 2,100 ft²
Overall firebox volume: 2.4 ft³
EPA loading volume: 1.95 ft³
Maximum burn time(9): 8 h
Maximum heat output-dry cordwood(4): 75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5): 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5): 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6): 0.72
Average overall efficiency-dry cordwood (LHV)(5)(7): 0.77
Optimum efficiency(1)(2): 0.79
Optimum heat transfer efficiency(8): 0.76
Average particulate emission rate(3): 2.3 g/h
Average CO(10): 69 g/h

Specifications
Model # : DB03190
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Overall dimension (Width): 26"
Overall dimension (Height): 32 3/4"
Overall dimension (Depth): 32"
Premium quality blower included (CFM): 100 CFM included
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 11 1/2"
Distance-center of the flue outlet to side unit: 13"
Recommended chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 12'
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/2"
Door opening size (Height): 9"
Glass type: Ceramic glass
Glass surface - W x H: 16" x 9 1/4"
Steel thickness-body: 3/16"
Steel thickness-top: 5/16"
Firebox size (Width): 21"
Firebox size (Height): 11 3/4"
Firebox size (Depth): 16 3/4"
Log positioning: Loading over width
Maximum log length: 20"
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): UL 1482, UL 737
Warranty: Limited lifetime
Shipping weight: 367 lb (166 kg)
Approved as add-on to an existing furnace: No

Click to see the Drolet General Wood Stove Manual (PDF)

Click to see the Drolet Heritage Wood Stove Manual (PDF)

Click to see the Drolet Heritage Wood Stove Dimensions (PDF)
