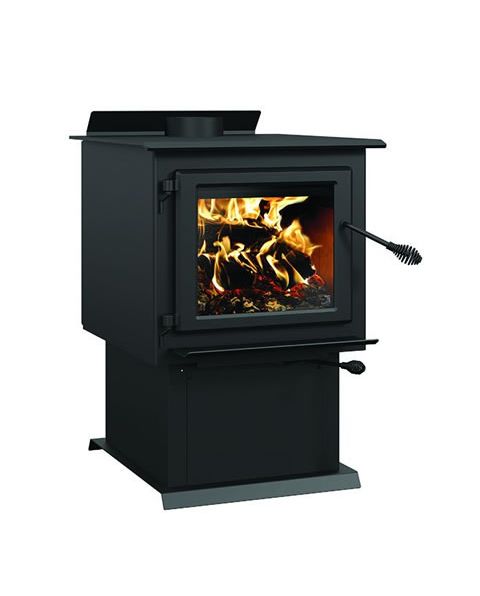

Century Heating FW3200 Wood Stove - SKU: CB00023
- Extra-large firebox, ideal for large spaces and harsh climates
- Log loading over depth (north-south)
- Included: pedestal, ash lip, air intake damper and rear air deflector
- C-cast top heat protector for added durability
- Cast iron door and ceramic glass
- EPA certified at 0.95 g/h
- Non-catalytic combustion system
- Designed and made in Canada
OPTIONS: 100 CFM blower, thermodisc, ash drawer, firescreen, fresh air intake kit, fresh air intake register and insulated flex pipe for fresh air intake.
SPECIFICATIONS
Fuel type: Dry cordwood
Recommended heating area(3): 900 - 2,300 ft²
Overall firebox volume: 3.3 ft³
EPA loading volume: 2.67 ft³
Maximum burn time(3): 10 h
Maximum heat output-dry cordwood(4): 90,000 BTU (26.4 kW)
Minimum overall heat output rate(4) (5): 15,841 BTU/h (4.64 kW)
Maximum overall heat output rate(4) (5): 57,041 BTU/h (16.72 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6): 71.10%
Average overall efficiency-dry cordwood (LHV)(5) (7): 76.6%
Optimum efficiency(8) (9): 78%
Optimum heat transfer efficiency(11): 74%
Average particulate emission rate(1): 0.95 g/h
Average CO(10): 61.3 g/h
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Premium quality blower included (CFM): Optional
Certified according to applicable standards: CAN/USA accredited laboratory
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 15"
Overall dimension (Width): 24 1/4"
Overall dimension (Depth): 31 1/4"
Overall dimension (Height): 36 1/8"
Door type: Single, glass with cast iron frame
Door opening size (Width): 16"
Door opening size (Height): 11 1/8"
Glass type: Ceramic glass
Glass surface - W x H: 13 7/8" x 11 3/4"
Firebox size (Width): 19"
Firebox size (Height): 14 1/8"
Firebox size (Depth): 21"
Maximum log length: 20" (16" recommended)
Log positioning: Loading over depth
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): UL 1482, UL 737
Steel thickness-body: 3/16"
Steel thickness-top: 5/16"
Warranty: Limited 5 years
Shipping weight: 359 lb (163 kg)
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
Click to see the Century Heating FW3200 Wood Stove Manual
