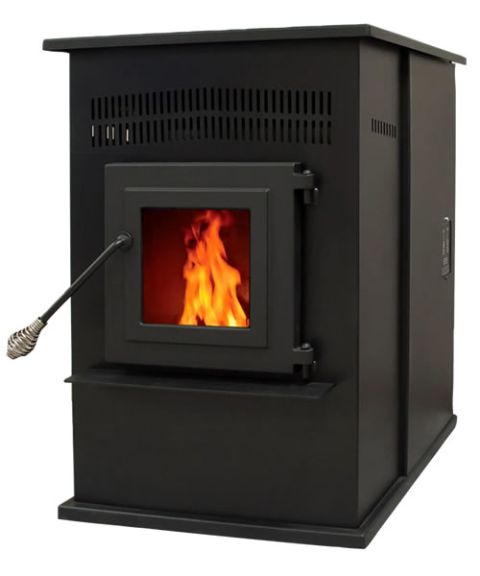

Englander 25-CBPAH Pellet Stove - ESW0020

Englander 25-CBPAH Pellet Stove - SKU: ESW0020

This stove is all business - powerful enough to heat up to 2,200 Square Feet, keeping your home warm all season long. And, though less bulky than similar designs, the huge hopper on this stove can hold 120 lbs. of pellets (three bags), allowing it to burn up to 75 hours between reloading.

It is powered by our one-touch, auto-start igniter and our proven, user-friendly control board for quick and easy operation - just press ON and choose your desired heat setting. The viewing glass with air wash gives a great view of the fire, and a fresh air hook-up kit is included. The stove is also Mobile Home approved.

- Made in USA
- Heats up to 2,200 Square Feet
- Hopper holds 120 lb of wood pellets
- Up to 75h burn time per filling
- EPA latest certification means High Efficiency and Low Emissions
- Mobile Home Approved
- Outside Air Kit Included

Fuel type: Pellet (Premium grade or better)
Recommended heating area: 500 - 2,200 Square Feet
Hopper capacity: 120 lb
Maximum burn time: 75 h
Maximum heat input rate: 31,885 BTU/h (9.35 kW)
Minimum overall heat output rate: 11,692 BTU/h (3.43 kW)
Maximum overall heat output rate: 22,988 BTU/h (6.74 kW)
Minimum average overall efficiency (HHV): 68.40%
Maximum average overall efficiency (LHV): 73.70%
Optimum efficiency: 87.40%
Optimum heat transfer efficiency: 74%
Burn rate: 1.6 - 3.75 lb/h
Average particulate emission rate: 0.763 g/h
Average CO: 0.78 g/h
Average electrical power consumption for ignition cycle: 5.65A (661 W)
Average electrical power consumption for continuous operation: 4.15A (361 W)
Mobile home approved: Yes, with fresh air intake
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM): 176 CFM included
Combustion technology: Top-feed
Baffle type: Mild steel
Flue outlet diameter: 3"
Recommended chimney diameter: 3"-4"
Type of chimney: ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width): 24 1/2"
Overall dimension (Height): 35 1/2"
Overall dimension (Depth): 25 1/2"
Voltage and frequency: 120 VAC / 60 Hz
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface - W x H: 8" x 8"
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA, ASTM E2779
Canadian Standard (safety): ULC S627
USA Standard (safety): UL 1482, ASTM E1509
Warranty: 5 year Limited
Shipping weight: 300 lb

Click to see the Englander 25-CBPAH Pellet Stove Manual (PDF)
