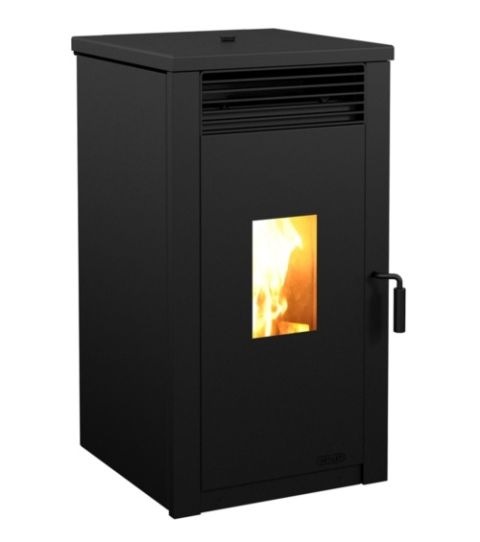

Drolet Edison Pellet Stove - DP00065

The Edison, Drolet's newest high efficiency pellet stove, boasts great contemporary design and highly economical performance. This EPA appliance features the latest technology that allows it to automatically switch to optional back-up battery power in the event of a power interruption. A unique, built in charge controller enables the Edison to be connected directly and permanently to the batteries. Also, the conception permits to connect the Edison to a solar panels system or other secondary source of renewable energy.

Features:
Model # : DP00065
Combustion technology: Bottom-feed
Thermostatic or manual mode: Yes
High-efficiency EPA certified appliance: Yes
Electronic igniter: Yes
Chimney diameter: N.A.
Flue outlet diameter: 3"
Type of chimney: ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Baffle type: Stainless steel
Approved for an alcove installation: Yes
Approved for a mobile home installation: Yes, with fresh air intake
Shipping Weight: 413 lb (187 kg)
Door type: Single, glass with steel frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 6 1/2" X 10 1/2"
Glass air-wash system: Yes
Premium quality blower included (CFM): Axial 220
Noise level at 6 feet: 45 dBa (+/- 3 dBa) - 52 dBa (+/- 3 dBa)
Overall dimension (Height): 41 1/4"
Overall dimension (Width): 22 1/4"
Overall dimension (Depth): 26 3/4"
Adjustable threaded legs: Yes
Voltage and frequency: 88 - 264 VAC / 47 - 63 Hz
AC Current: 3.6A/115VAC - 1.8A/230VAC
Battery back-up: 24V DC / 20 Ah (min.)
Main control board fuses: ATC 7.5A 32VDC
Battery back-up control board fuses: ATC 7.5A 32VDC
Power cord inlet socket fuse: 3A / 250V (5 X 20)
Main board battery: CR2032
USA standard (emissions): EPA
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, ASTM E1509
Canadian standard (safety): ULC S627
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime
