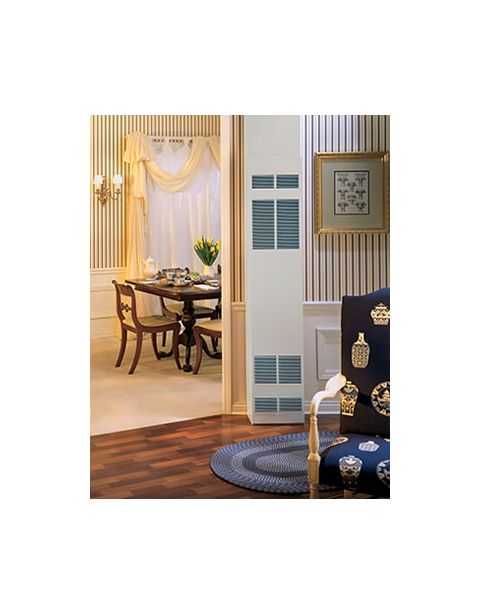

Empire Counter-Flow B-Vent Wall Furnace - 40,000 BTU - FAW-40

Empire Counter-Flow B-Vent Wall Furnace - 40,000 BTU - FAW-40

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Counterflow wall furnaces circulate warmth at floor level to provide comfort at a fraction of the cost of electric heat. The front panels remove easily for cleaning and servicing.

Choose standing pilot or electronic ignition. Optional side and rear registers help disperse heat to other areas.

Model - FAW-40
Color - Beige
Input BTU/HR - 40,000

Width - 14 1/8''
Depth - 10 3/8''
Height - 72 1/2''

Temperature Control
Electric 24-Volt Wall Thermostat Positive Off Setting - Yes
Blower Output - 275 cfm

Type of Gas - Natural Gas or Propane

Minimum Clearance to Combustibles
Top (to Ceiling) - 4''
Each Side (To Nearest Adjacent Sidewall) - 4'' or 18'' with Side Outlet Register Option
Bottom of Unit to Wood Floor - 0''
Center of Vent Connector Opening to Combustibles - 1 3/4''
Depth Unit May Be Recessed - 9 1/2''

Gas Inlet
Iron Pipe Size (N.P.T.) - 1/2''
Wall to Valve Inlet - 7 3/4''
Center of Heater to Center of 1/2'' Inlet Elbow - NA
Floor Covering to Valve Inlet - 4''

Size of Flue Collar - 4'' Oval
Size of Flue with Oval-to-Round Adapter - 4'' Round
Minimum Vent Opening in Ceiling:
For Oval Type B Flue Pipe - 4 1/2'' x 9 1/4''
For Round Type B Flue Pipe - 6 1/2'' diameter

Safety Control
Pilot and Main Burners Include Automatic Shut-Off

Combustion Chamber carries a 10-year limited warranty
All other parts carry a 1-year limited warranty

Click to see the Empire Bvent Counter-Flow Heater Manual

Click to see the Empire Counter-Flow BVent Heaters Brochure
