MHP Everglow VK7A Cast Aluminum Mount Gas Lamp Head Series - VK7A
This traditional six glass panel designed lamp offers functionality, flexibility and sophisticated style. The tallest of our lamps is sure to make a statement in any setting. Flat tempered-glass panels included.
24" H x 13-1/2" W
Gas lamps and mantles are designed to be on 24/7
Available in Natural Gas or LP Gas
UL Listed
Click to see Everglow Gas Lamps and Torches Brochure

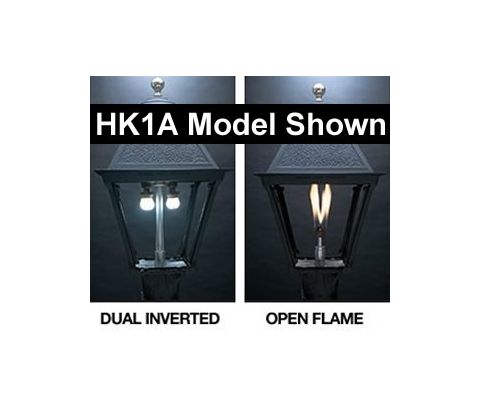

GAS MANTLE BURNERS
(Dual Inverted Burner Style)
Gas Mantle lighting uses an incandescent gas mantle to generate a steady, bright light.
Gas Mantle Burner Advantages:
The Dual Inverted Burner style is the best options for windy conditions
Provides the same light output as a 50-watt electric bulb, but only uses the energy equivalent to a pilot light.
Reliable and secure. Works even when your power goes out keeping your outdoor areas lit.
Delivers a historic, romantic ambiance to outdoor entertainment spaces
Gas Mantle Burner Maintenance:
Replace your gas mantles at least once a year
Clean glass and remove debris at least twice a year. Removing debris will improve performance by maintaining airflow to your gas mantles.
Blow out the gas lines annually to ensure proper gas supply to your lamp.
OPEN FLAME BURNER
Open Flame burners have a warm, flickering light that creates a dramatic ambiance for any outdoor entertainment space.
Open Flame Burner Advantages:
Imitates the original gas lamp look with a warm, flickering fish-tail flame
Adds drama and romance to any outdoor setting, entrance or walkway
Reliable and secure. Works even when your power goes out keeping your outdoor areas lit.
Low-maintenance operation
Open Flame Burner Maintenance:
Perform these simple maintenance tasks to keep your open flame lamps operating smoothly.
Clean glass and remove debris at least twice a year to maintain performance and enhance the airflow around the burner
The orange flame can and will produce combustion byproducts that will necessitate the glass being cleaned more often
Blow out the gas lines annually to ensure proper gas supply to your lamp
Proper Lighting Instructions for Dual Inverted Burners
STEP 1: Remove the glass by lifting from the bottom with forefinger, pulling out slightly, and lowering. NOTE: Proper combustion is essential. Do not obstruct air inlet or outlet vents
STEP 2: WITH GAS TURNED OFF, hold a lighted match up to but not touching the mantle. This will burn off the protective coating (and it will flash slightly). Do not touch the mantle with the match.
STEP 3: After the mantles have stopped burning, use a screwdriver to slowly turn the gas ON and hold another match up to, but not touching, the mantles to light them. When lit, turn the gas on full.
STEP 4: Your MHP lamp is factory set to burn at its most efficient point. However, this adjustment may be changed during shipment. To adjust this, raise or lower the air shutter until the mantles are burning their brightest. Shutter opening should be approximately 1/16"
STEP 5: If flame extends above the ceramic mantle ring, turn off lamp valve and contact your local gas company or authorized MHP dealer. NOTE: Proper combustion is essential. Do not obstruct air inlet or outlet vents.
STEP 6: Replace the glass by fitting the top edge into the frame top, holding the glass against the tabs inside the frame. Allow the glass to slide into the frame bottom.
Proper Lighting Procedure for Open Flame Burners
STEP 1: Remove the glass by lifting from the bottom with forefinger, pulling out slightly, and lowering. NOTE: Proper combustion is essential. Do not obstruct air inlet or outlet vents.
STEP 2: Use a screwdriver to slowly turn the gas ON and hold a match up to the burner. When lit, turn the gas on full.
STEP 3: Replace the glass by fitting the top edge into the frame top, holding the glass against the tabs inside the frame. Allow the glass to slide into the frame bottom.
Various SKUs for this VK7A Series Lamp: VK7A-E, VK7A-N, VK7A-NO, VK7A-P, VK7A-PO
