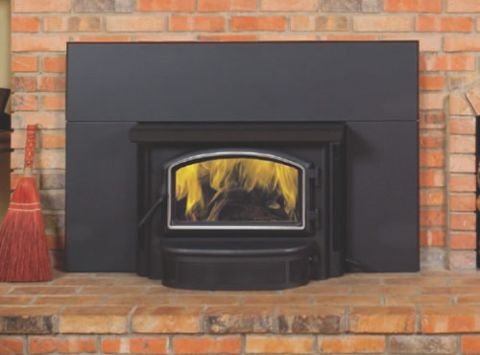

Lexington Forge Savannah SSI30 Wood Burning Steel Insert - SSI30
The wood burning steel insert turns an inefficient masonry fireplace into a productive way to heat your home. Designed with the latest wood burning technology, this insert is an efficient heat source and is easily installed into almost any fireplace. A high-tech combustion system provides a clean, vibrant burn. Traditional styling combined with the warmth and ambiance of a fire make the Lexington Forge® wood burning insert a valued addition to your home. Their designers and craftsman have meticulously scrutinized every detail to ensure that you receive the finest appliance built today.
Combustion System
• Single Primary Air Intake/Control - conveniently regulates air to primary combustion zone and controls burn rate.
• Air Wash Manifold - preheated air is dispersed downward to shield glass from soot particles and keep glass clean at all burn rates.
• Secondary Air Inlets - preheated air is metered above the primary combustion zone to complete combustion of any unburned gases.
• Refractory Baffle System - slows heated gases to promote complete combustion and efficient heat transfer.
• Refractory Liner - promotes higher firebox temperatures for complete combustion and protects firebox for many years of maintenance free enjoyment.
• Lower Air Inlet - metered air is injected at base of primary combustion zone to promote complete combustion of fuel.
Steel Insert Features
• High-tech clean burning combustion system
• Easily removable baffle for in-place chimney cleaning
• Standard side heat shields
• Clean, non-sooting, glass
• Unique leveling system with rear roller
• Removable flue collar for easy installation
• Refractory lined firebox
• Heavy 5/16 plate steel top for durability
• Cast door and ash lip
• 6" flue collar
• Approved for masonry and factory built fireplaces
• 160 CFM variable speed thermally activated blower with manual override
• Self adjusting surrounds accommodates variations in fireplace depths. Available in two sizes: 30" x 40" and 34" x 44"
• EPA Phase II and Washington State approved
Specifications SSI30
• Shipping weight: 360 lbs.
• Width: 30-3/4"
• Overall Depth: 22-3/4"
• Depth into Fireplace: 10"-14"
• Protrusion on Hearth: 8"-12"
• Height to top of collar: 22-1/4"
• Height to top of unit: 20-5/8"
• Firebox Size: 2 ft.3
• Flue: 6"
• Log Length: 18"
• Fire Viewing Area: 159 square inches
Performance (BTU range per hour)
• BTU range per hour
• EPA test fuel: 11,000-29,600 BTU/HR
• Cord Wood Burn Rate: 55,400 BTU
• Burn time: Up to 10 hours
• Heating Capacity: Up to 2,200 square feet
• Dual Impeller Blower: 160 cfm
Additional Performance Features
• Combustion Efficiency: 63%
• Emission: 3.5 G/HR
• Washington State Approved: Yes
• Non-catalytic: Yes
