Enervex 8 inch ASCA Air Cooled Steel Chimney Adapter - for RS and RSHT 012 and 014 - SKU: 222.0400.3008
The adapter will fit an 8" inner dimension air-cooled chimney to hold an RS 012, RSHT 012, or RSHT 014 fan. The ASCA Steel Chimney Adapter is used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. It is mounted at the chimney termination point.

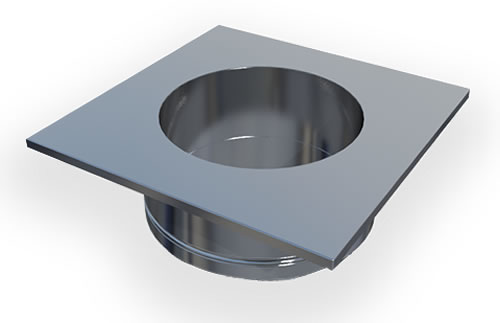

The adapter consists of a square mounting plate to support the fan, and a round collar that can slide into the chimney for a tight fit. The outer diameter of the collar is 1/8" smaller than the inner diameter of the chimney. The 5" collar eliminates the need to secure the adapter externally.
Features
Can be used on most round chimneys
Integrated support allows venting of inner walls
Easy to install without use of tools
Specifications
Standard Sizes: 4" to 13" (150mm to 325mm)
Material: Stainless Steel 316L
Collar Size: 1/8" (3 mm) less than the chimney ID
Warranty: 2-year Factory Warranty
California residents, click here for information on Proposition 65 BEFORE purchasing.
Tags: Enervex, Chimney Adaptor, 22204003008, NS3368
The adapter will fit an 8" inner dimension air-cooled chimney to hold an RS 012, RSHT 012, or RSHT 014 fan. The ASCA Steel Chimney Adapter is used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. It is mounted at the chimney termination point.
The adapter consists of a square mounting plate to support the fan, and a round collar that can slide into the chimney for a tight fit. The outer diameter of the collar is 1/8" smaller than the inner diameter of the chimney. The 5" collar eliminates the need to secure the adapter externally.
Features
Can be used on most round chimneys
Integrated support allows venting of inner walls
Easy to install without use of tools
Specifications
Standard Sizes: 4" to 13" (150mm to 325mm)
Material: Stainless Steel 316L
Collar Size: 1/8" (3 mm) less than the chimney ID
Warranty: 2-year Factory Warranty
