Enervex 14 inch MFD (Mechanical Fireplace Damper - used with ADC150 or ADC100) for RS 014 and RS 016 - 304 Stainless Steel - 120V - SKU: 216.0200.1214

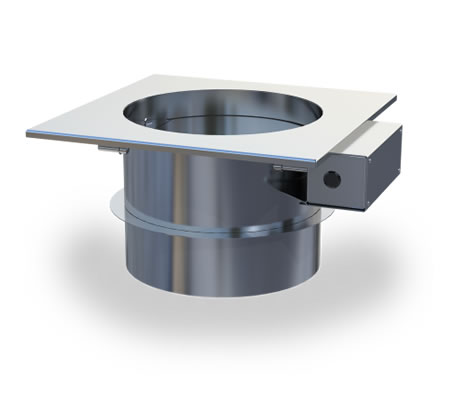

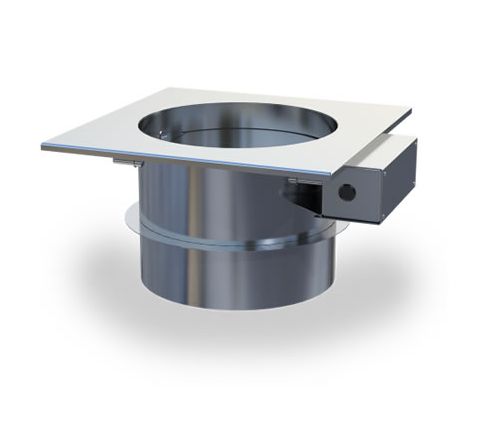

This MFD Mechanical Fireplace Damper prevents heat from escaping up through the chimney when the fireplace is not in use, and prevents backdraft down the chimney. It is designed for chimney top installations.
The MFD is used as a component in a combined fan and damper system. The damper actuator can be interlocked to a control (ADC100 or ADC150) so it only operates when the fireplace is in use and the fan is running.
The damper is equipped with fail safe system and is rated for 1400°F (760°C).
Features
Saves energy
Meets energy code requirements
Integrated fail safe system
Low profile
Specifications
Available Sizes (ID): 6" to 16" (150mm to 400mm)
Material: Stainless Steel 316L
Actuator: Brushless DC Motor
Power: 120VAC or 24VAC/VDC Brushless Motor
Torque: 54 in-lbs (6 Nm)
Speed: 90° in 15 Sec.
End Switches: 2
Temperature Rating: 1400°F (760°C)
Warranty: 2-year Factory Warranty
Click to see the Enervex MFD Mechanical Fireplace Damper Information (PDF)
California residents, click here for information on Proposition 65 BEFORE purchasing.
Tags: Enervex, 21602001214
This MFD Mechanical Fireplace Damper prevents heat from escaping up through the chimney when the fireplace is not in use, and prevents backdraft down the chimney. It is designed for chimney top installations.
The MFD is used as a component in a combined fan and damper system. The damper actuator can be interlocked to a control (ADC100 or ADC150) so it only operates when the fireplace is in use and the fan is running.
The damper is equipped with fail safe system and is rated for 1400°F (760°C).
Features
Saves energy
Meets energy code requirements
Integrated fail safe system
Low profile
Specifications
Available Sizes (ID): 6" to 16" (150mm to 400mm)
Material: Stainless Steel 316L
Actuator: Brushless DC Motor
Power: 120VAC or 24VAC/VDC Brushless Motor
Torque: 54 in-lbs (6 Nm)
Speed: 90° in 15 Sec.
End Switches: 2
Temperature Rating: 1400°F (760°C)
Warranty: 2-year Factory Warranty
Click to see the Enervex MFD Mechanical Fireplace Damper Information (PDF)California residents, click here for information on Proposition 65 BEFORE purchasing.
Tags: Enervex, 21602001214
Manufacturer:
Enervex
