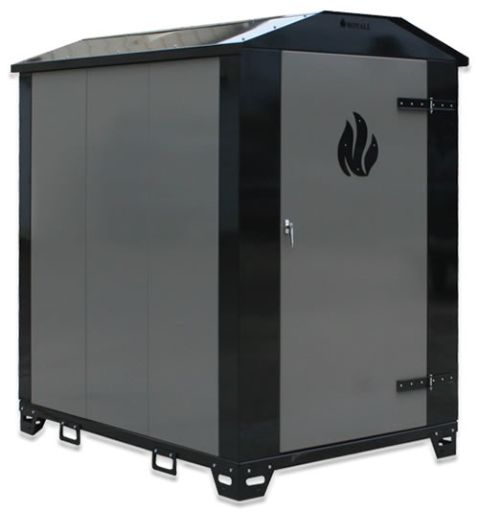

Royall Outdoor Wood/Coal Boiler - 200000 BTU - 6200

Royall 6200 Pressurized Residential and Commercial Outdoor Wood/Coal Boiler - 200000 BTU - 6200

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Royall's time honored commercial outdoor wood boiler wrapped in R-19 insulation and set inside a high quality outdoor shelter. This boiler will heat small businesses under 4,500 sq feet in area with even heat. Reliability that can keeps your commerical business warm and comfortable no matter how cold it gets. This outdoor commercial boiler system connects easily to any existing heating system you may already have in place, or as a supplement to an existing heating system.

Draft Induction Options: (1) 50cfm Draft Induction Fans
Grate Options: (1) Cast Iron Front Frame, (1) Case Iron Rear Frame, (4) Rocker Grates
Boiler Construction: 1/4" and 5/16" SA Boiler Plate, High Temperature Powder Coating
Overall Dimensions: Boiler - 59" x 35" x 30.5" (HxWxD), Shelter - 77.5" x 49" x 83" (HxWxD)
Water Capacity: 90 Gallons
Firebox Capacity: 13 Cubic Feet
Max Log Length: 26" Length
Fuel Loading Door: 17" x 17"
Ash Removal Door: 5" x 7"
Removable Ash Pan: Included Standard
Firebrick Requirements: (12) 9" x 4.5" x 1.25", (2) 2.25" x 9" x 1.25"
Rope Gasket: Fuel Door - 6', 7/8" Rope, Ash Door - 3.5', 5/8" Rope
Boiler Flue Size: 6" Diameter
Boiler Flue To Ground: 55.75 to Center
Boiler Supply and Return: 2" FNPT Connections
Approximate Weight: 2,384 lbs

The heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

California residents please click on the link for information on Proposition 65 BEFORE purchasing.

Not for sale in California, Oregon, and Washington.
