Royall Outdoor Wood/Coal Boiler - 150000 BTU - 6150

No Stock Currently Available
6150-OUTDOOR

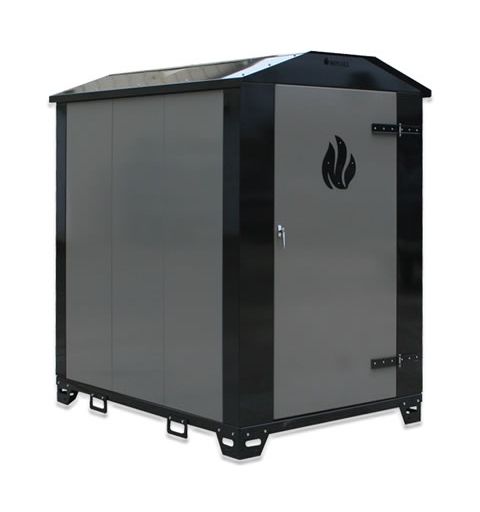

Royall 6150 Outdoor Pressurized Wood/Coal Boiler - 150000 BTU - 6150

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Get Royall's hard working 6150 wood boiler wrapped in R-19 insulation and set inside a high quality outdoor shelter. Our premium residential outdoor wood boiler will heat homes under 3,000 sq feet in area with even, whole house comfort. Reliability that can keep you warm and comfortable no matter how cold it gets. This boiler systems connects easily to existing heating systems you may already have in place, or as a supplement to existing heating systems.

Draft Induction Options: (1) 50cfm Draft Induction Fans
Grate Options: (1) Cast Iron Front Frame, (1) Case Iron Rear Frame, (4) Rocker Grates
Boiler Construction: 1/4" and 5/16" SA Boiler Plate, High Temperature Powder Coating
Overall Dimensions: Boiler - 51" x 26" x 38.5" (HxWxD), Shelter - 77.5" x 47" x 60" (HxWxD
Water Capacity: 30 Gallons
Firebox Capacity: 8.1 Cubic Feet
Max Log Length: 26" Length
Fuel Loading Door: 10" x 14"
Ash Removal Door: 5" x 7"
Removable Ash Pan: Included Standard
Firebrick Requirements: (12) 9" x 4.5" x 1.25", (2) 2.25" x 9" x 1.25"
Rope Gasket: Fuel Door - 4.5', 5/8" Rope, Ash Door - 3.5', 5/8" Rope
Boiler Flue Size: 6" Diameter
Boiler Flue To Ground: 48.5 to Center
Boiler Supply and Return: 1-1/4" FNPT Connections
Approximate Weight: 2,054 lbs

The heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

Alternate Part Number: BOI80128

California residents please click on the link for information on Proposition 65 BEFORE purchasing.

Not for sale in California, Oregon, and Washington.

Manufacturer:
Royall
Supply chain disruptions have greatly impacted inventory levels in our industry, as well as in many other organizations across the globe. We want to personally acknowledge these shifts in supply levels have affected our ability to surpass your expectations in many situations for prompt delivery of your order. Should you not be able to wait for supply delays, please contact us about stock levels before ordering. As always, we thank you for your business!
