Royall Indoor Wood/Coal Boiler - 490000 BTU - 6490NS

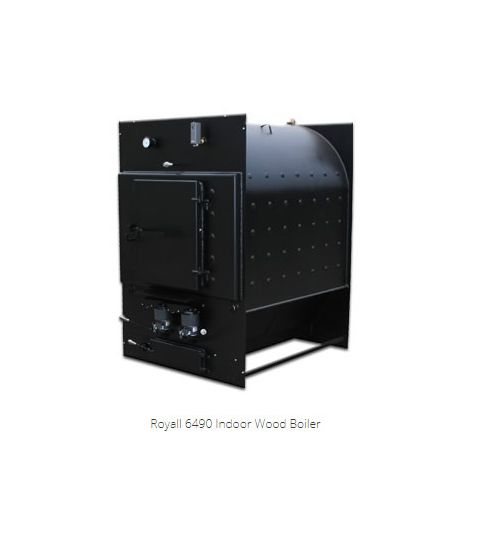

Royall 6490 Commercial Indoor Pressurized Wood/Coal Boiler - 490,000 BTU - 6490NS

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Royall's biggest commercial indoor wood boiler. The 6490 boiler is ready to provide a lot of heat when you need it. this commercial boiler will heat commercial businesses over 10,000 sq feet in area with even heat. Reliability that's built into every wood boiler we manufacture keeps your commercial business warm and comfortable no matter how cold it gets outside. This indoor commerical boiler systems connects easily to any existing heating system you may already have in place, or as a supplement to an existing heating system.

Draft Induction Options: (2) 146cfm Draft Induction Fans
Grate Options: (2) Cast Iron Front Frames, (6) Case Iron Rear Frames, (16) Rocker Grates
Boiler Construction: 1/4" and 5/16" SA Boiler Plate, High Temperature Powder Coating
Overall Dimensions: 74" x 50" x 63" (HxWxD)
Water Capacity: 260 Gallons
Firebox Capacity: 50 Cubic Feet
Max Log Length: 56" Length
Fuel Loading Door: 24" x 32"
Ash Removal Door: 5" x 17"
Removable Ash Pan: Included Standard
Firebrick Requirements: (36) 9" x 4.5" x 2
Rope Gasket: Fuel Door - 10', 1 1/4" Rope, Ash Door - 4', 5/8" Rope
Boiler Flue Size: 8" Diameter
Boiler Flue To Ground: 59.75 to Center
Boiler Supply and Return: 2 1/2" FNPT Connections
Approximate Weight: 2,600 lbs

The heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

California residents please click on the link for information on Proposition 65 BEFORE purchasing.

Not for sale in California, Oregon, and Washington.
