Royall Indoor Wood/Coal Boiler - 150000 BTU - 6150NS

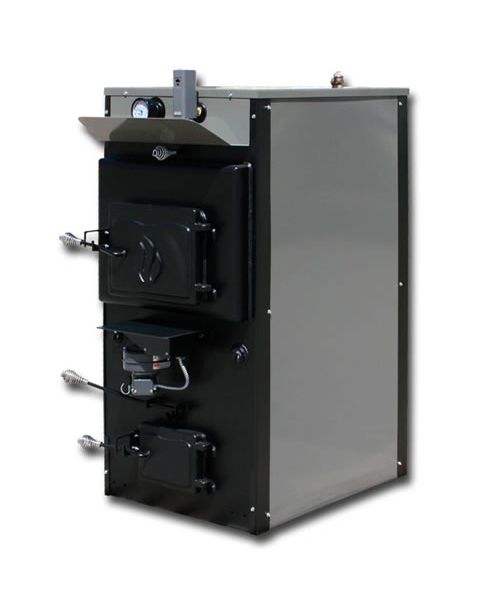

Royall 6150 Residential Indoor Pressurized Wood/Coal Boiler - 150000 BTU - 6150NS

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Royall's premium residential indoor wood boiler will heat homes under 3,000 sq feet in area with even, whole house comfort. Reliability that can keep you warm and comfortable no matter how cold it gets. This boiler systems connects easily to any existing heating system you may already have in place, or as a supplement to an existing heating system.

Draft Induction Options: (1) 50cfm Draft Induction Fans
Grate Options: (1) Cast Iron Front Frame, (1) Case Iron Rear Frame, (4) Rocker Grates
Boiler Construction: 1/4" and 5/16" SA Boiler Plate, High Temperature Powder Coating
Overall Dimensions: 51" x 26" x 38.5" (HxWxD)
Water Capacity: 30 Gallons
Firebox Capacity: 8.1 Cubic Feet
Max Log Length: 26" Length
Fuel Loading Door: 10" x 14"
Ash Removal Door: 5" x 7"
Removable Ash Pan: Included Standard
Firebrick Requirements: (6) 9" x 4.5" x 1.25", (2) 2.25" x 9" x 1.25"
Rope Gasket: Fuel Door - 4.5', 5/8" Rope, Ash Door - 3.5', 5/8" Rope
Boiler Flue Size: 6" Diameter
Boiler Flue To Ground: 41.5 to Center
Boiler Supply and Return: 1-1/4" FNPT Connections
Approximate Weight: 1,204 lbs

The heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

Alternate SKU: BOI80127

California residents please click on the link for information on Proposition 65 BEFORE purchasing.

Not for sale in California, Oregon, and Washington.
