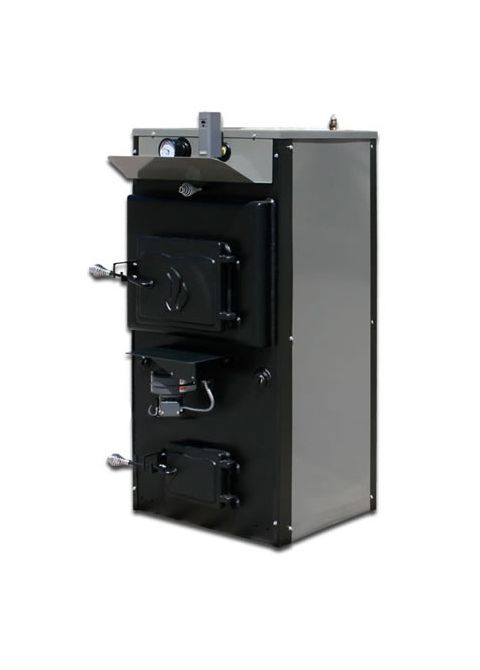

Royall 6100 Indoor Wood/Coal Boiler - 90000 BTU - 6100

Royall 6100 Residential Indoor Pressurized Wood/Coal Boiler - 90000 BTU - 6100

Almost never undersold. If you find a better price email us their quote and we'll likely beat it.

Royall's smallest residential indoor wood boiler puts out an amazing 90,000 btu with a small footprint. The perfect residential boiler for smaller homes under 1,800 sq feet in area. The Royall boiler series provides, even, whole house comfort and the technology to keep you comfortable no matter what mother nature throws at you.

Draft Induction Options: (1) 50cfm Draft Induction Fans
Grate Options: (1) Cast Iron Front Frame
(1) Case Iron Rear Frame
(4) Rocker Grates
Boiler Construction: 1/4" and 5/16" SA Boiler Plate, High Temperature Powder Coating
Overall Dimensions: 51" x 26" x 28" (HxWxD)
Water Capacity: 17 Gallons
Firebox Capacity: 4.75 Cubic Feet
Max Log Length: 20" Length
Fuel Loading Door: 10" x 14"
Ash Removal Door: 5" x 7"
Removable Ash Pan: Included Standard
Firebrick Requirements: (8) 9" x 4.5" x 1.25"
Rope Gasket: Fuel Door - 4.5', 5/8" Rope, Ash Door - 3.5', 5/8" Rope
Boiler Flue Size: 6" Diameter
Boiler Flue To Ground: 41.5 to Center
Boiler Supply and Return: 1-1/4" FNPT Connections
Approximate Weight: 530 lbs

The heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.

Alternate SKU: BOI80172

California residents please click on the link for information on Proposition 65 BEFORE purchasing.
