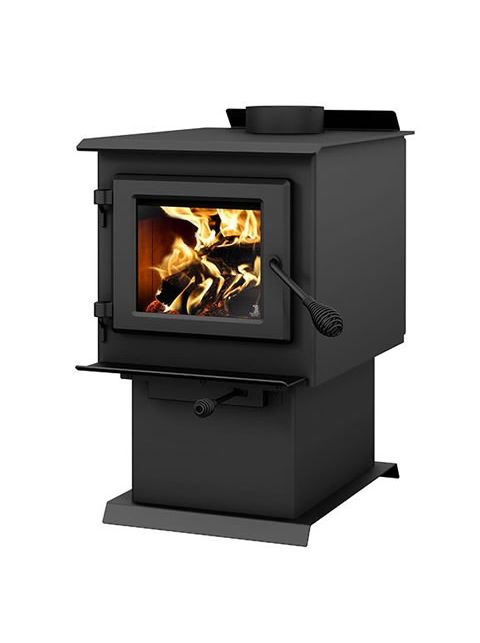

Century Heating S250 Wood Stove - SKU: CB00025
Features
- Small size firebox, ideal for tight spaces
- Included: pedestal, ash lip, air intake damper and rear air deflector
- Stainless steel top heat protector to extend the life of your appliance
- Cast iron door and ceramic glass
- EPA certified at 1.8 g/h
- Non-catalytic combustion system
- Designed and made in Canada
OPTIONS: 100 CFM blower, thermodisc, firescreen, fresh air intake kit, fresh air intake register and insulated flex pipe for fresh air intake.
SPECIFICATIONS
Fuel type: Dry cordwood
Recommended heating area(3): 250 - 1,200 square feet
Overall firebox volume: 1.7 cubic feet
EPA loading volume: 1.55 cubic feet
Maximum burn time(3): 5 h
Maximum heat output-dry cordwood(4): 45,000 BTU/h (13.19 kW)
Minimum overall heat output rate(4) (5): 12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4) (5): 26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6): 74%
Average overall efficiency-dry cordwood (LHV)(5) (7): 79%
Optimum efficiency(8) (9): 80%
Optimum heat transfer efficiency(11): 79%
Average particulate emission rate(1): 1.8 g/h
Average CO(10): 74 g/h
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Premium quality blower included (CFM): Optional
Certified according to applicable standards: CAN/USA accredited laboratory
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 12"
Overall dimension (Width): 18 1/2"
Overall dimension (Depth): 29 3/8"
Overall dimension (Height): 30 1/4"
Door type: Single, glass with cast iron frame
Door opening size (Width): 12"
Door opening size (Height): 7 5/8"
Glass type: Ceramic glass
Glass surface - W x H: 9 5/8" x 8 1/8"
Firebox size (Width): 14 1/4"
Firebox size (Height): 11 3/4"
Firebox size (Depth): 19 1/8"
Maximum log length: 17" (16" recommended)
Log positioning: Loading over depth
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): UL 1482, UL 737
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Warranty: Limited 5 years
Shipping weight: 302 lb (137 kg)
Click to see the Century Heating S250 Wood Stove Manual
