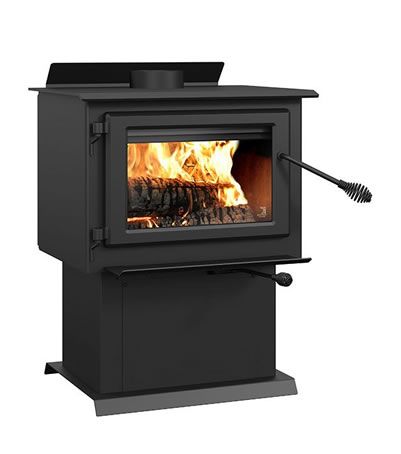

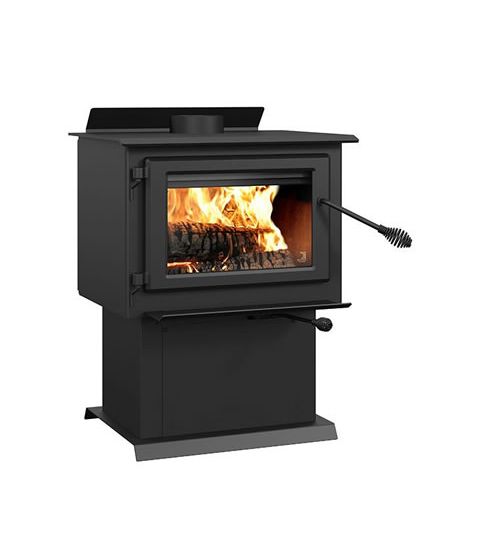

Century Heating FW2800 Wood Stove - SKU: CB00021
Features
- Medium size firebox, ideal for tight spaces
- Included: ash lip, air intake damper and rear air deflector
- Stainless steel top heat protector to extend the life of your appliance
- Cast iron door and ceramic glass
- EPA certified at 1.26 g/h
- Non-catalytic combustion system
- Designed and made in Canada
- Weight : 308 lbs
OPTIONS: 100 CFM blower, quick connect thermodisc, ash drawer, firescreen, fresh air intake kit, fresh air intake register and insulated flex pipe for fresh air intake kit.
SPECIFICATIONS
Fuel type: Dry cordwood
Recommended heating area(3): 500 - 1,800 square feet
Overall firebox volume: 1.9 cubic feet
EPA loading volume: 1.44 cubic feet
Maximum burn time(3): 6 h
Maximum heat output-dry cordwood(4): 65,000 BTU/h (19 kW)
Minimum overall heat output rate(4) (5): 15,650 BTU/h (4.6 kW)
Maximum overall heat output rate(4) (5): 23,300 BTU/h (6.83 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6): 70%
Average overall efficiency-dry cordwood (LHV)(5) (7): 75%
Optimum efficiency(8) (9): 78%
Optimum heat transfer efficiency(11): 74%
Average particulate emission rate(1): 1.26 g/h
Average CO(10): 58 g/h
Alcove installation approved: Yes
Mobile home approved: Yes, with fresh air intake
Premium quality blower included (CFM): Optional
Certified according to applicable standards: CAN/USA accredited laboratory
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Chimney diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: 15"
Overall dimension (Width): 24 1/4"
Overall dimension (Depth): 24 7/8"
Overall dimension (Height): 32 3/8"
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/4"
Door opening size (Height): 8"
Glass type: Ceramic glass
Glass surface - W x H: 14 7/8" x 9 1/4"
Firebox size (Width): 19 5/8"
Firebox size (Height): 11 7/8"
Firebox size (Depth): 13 1/2"
Maximum log length: 18" (16" recommended)
Log positioning: Loading over width
Baffle type: High quality vermiculite
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S627
USA Standard (safety): UL 1482, UL 737
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Warranty: Limited 5 years
Shipping weight: 310 lb (141 kg)
Click to see the Century Heating FW2800 Wood Stove Manual
