Englander Blue Ridge 300-I Wood Insert - ESW0009

Englander

$1,759.00

Firesceen:

Fresh Air Intake Kit:

Adaptor:

Hook Up:

Flex Pipe:

Intake Register:

Delivery:

Ask a question

SKU: ESW0009

Quantity:

+ −

Description
Features

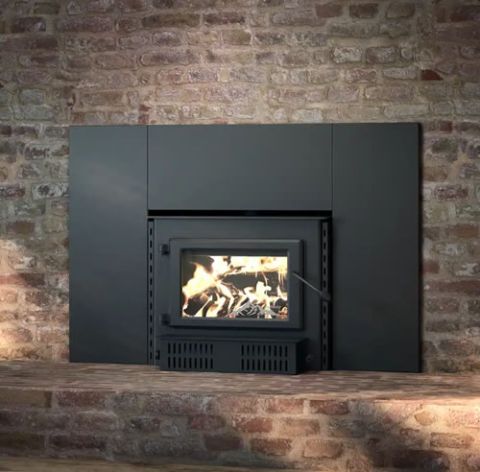

Englander Blue Ridge 300-I Wood Insert - SKU: ESW0009

Ideal for heating up to 2,100 square feet, the Blue Ridge 300-I is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. It is the perfect choice to update your masonry fireplace and make it efficient!

Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc

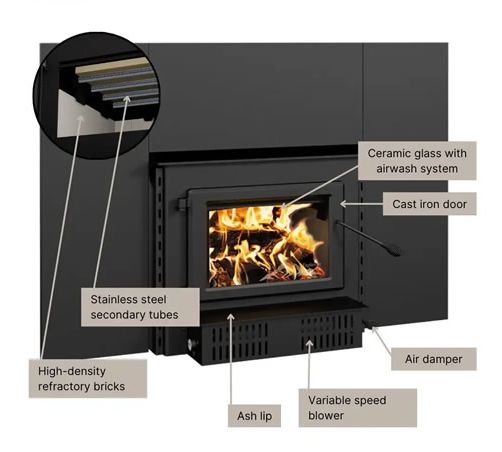

- High efficiency 2.4 ft³ firebox
- Up to 8 hours burn time
- Spring faceplate adjustment system which easily adapts to any type of hearth
- Steel top reinforced with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Qualifies for the 30% US tax credit

Specifications
Fuel type: Dry cordwood (16" recommended)
Heating area: 500 - 2,100 ft²
Overall firebox volume: 2.4 ft³
EPA loading volume: 1.95 ft³
Maximum burn time: 8 h
Maximum heat output-dry cordwood: 75,000 BTU/h
Minimum overall heat output rate: 14,200 BTU/h (4.16 kW)
Maximum overall heat output rate: 44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV): 72 %
Average overall efficiency-dry cordwood (LHV): 77 %
Optimum efficiency: 79 %
Optimum heat transfer efficiency: 76 %
Average particulate emission rate: 2.3 g/h
Average CO: 69 g/h
Mobile home approved: No
Premium quality blower included (CFM): 144
Certified according to applicable standards: By an accredited laboratory (CAN/USA)
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 6 3/4"
Distance-center of the flue outlet to side unit: 13 1/2"
Recommended chimney diameter: 6"
Type of chimney: Liner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height: 12'
Overall dimension (Width): 50"
Overall dimension (Height): 34"
Overall dimension (Depth): 26 1/2"
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/2"
Door opening size (Height): 9"
Glass type: Ceramic glass
Glass surface - W x H: 14 7/8" x 9 1/4"
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Firebox size (Width): 21"
Firebox size (Height): 12"
Firebox size (Depth): 16 1/2"
Maximum log length: 20" oriented East-West
Log positioning: Loading over width
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
Minimum fireplace opening (Width): 28 7/8"
Minimum fireplace opening (Height): 23 3/8"
Minimum fireplace opening (Depth): 15 3/4"
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S628
USA Standard (safety): UL 1482, UL 737
Warranty: Limited 5 years
Shipping weight: 365 lb (165 kg)
