Englander Blue Ridge 150-I Wood Insert - ESW0006

Englander

$1,559.00

Firesceen Door:

Fresh Air Intake Kit:

Faceplate:

Adaptor:

Hook Up:

Flex Pipe:

Intake Register:

Delivery:

Ask a question

SKU: ESW0006

Quantity:

+ −

Description
Features

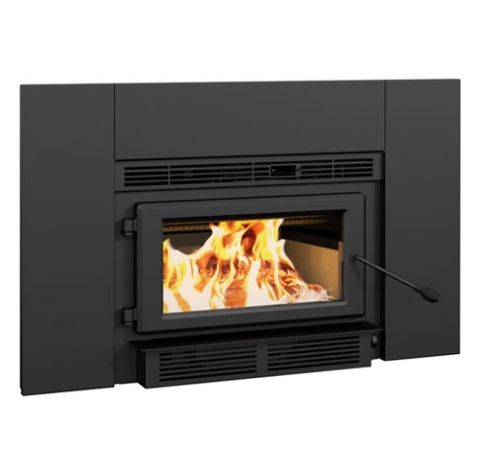

Englander Blue Ridge 150-I Wood Insert - SKU: ESW0006

The large glass of the Blue Ridge 150-I surface highlights a panoramic view of the flames to fully enjoy your moments near the fire. This compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.

Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc

- High efficiency 1.1 ft³ firebox
- Up to 7 hours burn time
- Lightweight steel faceplate with hooks that snap onto the front of the unit
- Steel top reinforced with a stainless steel heat shield
- High density refractory bricks
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Qualifies for the 30% US tax credit

Specifications
Fuel type: Dry cordwood
Heating area: 250 - 1,200 ft²
Overall firebox volume: 1.1 ft³
EPA loading volume: 1.03 ft³
Maximum burn time: 7 h
Maximum heat output-dry cordwood: 45,000 BTU/h
Minimum overall heat output rate: 8,471 BTU/h (2.48 kW)
Maximum overall heat output rate: 31,700 BTU/h (9.29 kW)
Average overall efficiency-dry cordwood (HHV): 75%
Average overall efficiency-dry cordwood (LHV): 80%
Optimum efficiency: 82%
Optimum heat transfer efficiency: 78%
Average particulate emission rate: 1.5 g/h
Average CO: 34 g/h
Mobile home approved: No
Premium quality blower included (CFM): 90 CFM included
Certified according to applicable standards: CAN/USA accredited laboratory
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 5"
Distance-center of the flue outlet to side unit: 10 3/8"
Recommended chimney diameter: 6"
Type of chimney: ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height: 12"
Overall dimension (Width): 27 7/8"
Overall dimension (Height): 20 1/8"
Overall dimension (Depth): 21 7/8"
Door type: Single, glass with cast iron frame
Door opening size (Width): 18 1/4"
Door opening size (Height): 7 7/8"
Glass type: Ceramic glass
Glass surface - W x H: 17 3/8" x 8 1/8"
Steel thickness-body: 3/16"
Steel thickness-top: 3/16"
Firebox size (Width): 16 3/8"
Firebox size (Height): 8 3/4"
Firebox size (Depth): 12 3/8"
Maximum log length: 17" (16" recommended)
Log positioning: Loading over width
Firebox lined with refractory bricks: Yes
Baffle type: Vermiculite
Minimum fireplace opening (Width): 25"
Minimum fireplace opening (Height): 19"
Minimum fireplace opening (Depth): 15 1/2"
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S628
USA Standard (safety): UL 1482, UL 737
Warranty: Limited 5 years
Shipping weight: 295 lb (134 kg)
Minimum fireplace opening (Height at the back): 17 1/4"
Minimum fireplace opening (Width at the back): 21 1/2"
