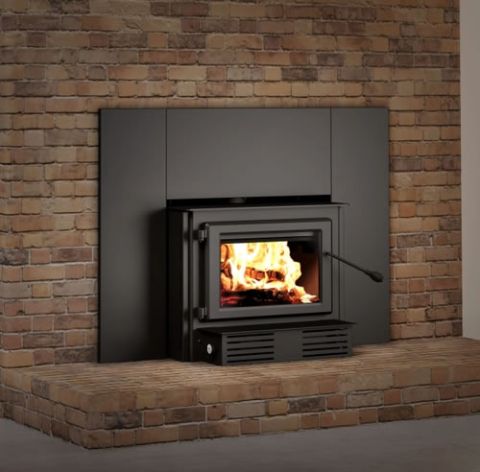

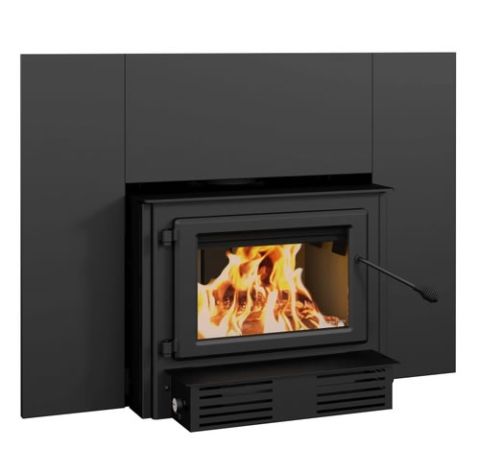

Century Heating CW2800 Wood Insert - SKU: CB00030

Mid-size, versatile firebox
Reinforced appliance top with a stainless steel heat shield
Cast iron door and ceramic glass
EPA certified at 2.4 g/h
Non-catalytic combustion system
Designed and made in Canada
Included: 32" x 44" faceplate, air intake damper and 144 CFM blower with thermodisc

Appliance performance
Fuel type: Dry cordwood
Heating area (3): 1,500 - 2,400 ft²
Overall firebox volume: 1.86 ft³
EPA loading volume: 1.44 ft³
Maximum burn time (3): 7 h
Maximum heat output-dry cordwood (4): 65,000 BTU/h (19 kW)
Minimum overall heat output rate (4)(5): 9,800 BTU/h (2.87 kW)
Maximum overall heat output rate (4)(5): 52,200 BTU/h (15.3 kW)
Average overall efficiency-dry cordwood (HHV) (5)(6): 0.68
Average overall efficiency-dry cordwood (LHV) (5)(7): 0.73
Optimum efficiency (8)(9): 0.76
Optimum heat transfer efficiency (11): 0.75
Average particulate emission rate (1): 2.4 g/h
Average CO (10): 103 g/h

General Features
Steel thickness-body: 3/16"
Steel thickness-top: 1/4"
Firebox size (Width): 19 5/8"
Firebox size (Height): 11 7/8"
Firebox size (Depth): 13 1/2"
Maximum log length: 18" (16" recommended)
Log positioning: Loading over width
Firebox lined with refractory bricks: Yes
Baffle type: High quality vermiculite
Minimum fireplace opening (Width): 27 1/2"
Minimum fireplace opening (Height): 21 1/2"
Minimum fireplace opening (Depth): 12 3/4"
High-efficiency certified appliance: Yes, EPA 2020 approved
Canadian Standard (emissions): CSA B415.1-10
USA Standard (emissions): EPA
Canadian Standard (safety): ULC S628
USA Standard (safety): UL 1482, UL 737
Warranty: Limited 5 years
Shipping weight: 360 lb (163 kg)
Alcove installation approved: No
Premium quality blower included (CFM): 144 CFM included
Certified according to applicable standards: CAN/USA accredited laboratory
Combustion technology: Non-catalytic
Stainless-steel secondary-air system: Yes
Flue outlet diameter: 6"
Distance-center of the flue outlet to back unit: 5 3/4"
Distance-center of the flue outlet to side unit: 12 3/4"
Recommended chimney diameter: 6"
Type of chimney: ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height: 12"
Overall dimension (Width): 27 1/4"
Overall dimension (Height): 21 1/4"
Overall dimension (Depth): 22 1/4"
Door type: Single, glass with cast iron frame
Door opening size (Width): 17 1/4"
Door opening size (Height): 8"
Glass type: Ceramic glass
Glass surface - W x H: 14 7/8" x 9 1/4"
