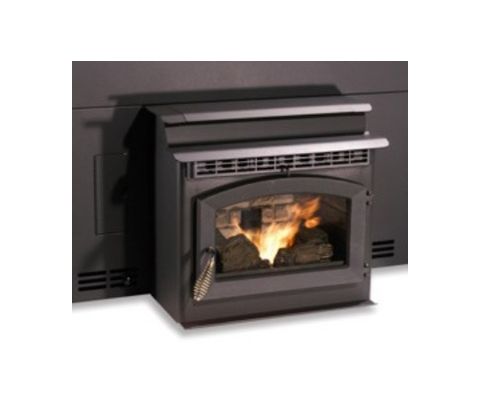

Breckwell Hearth Products P23I The Sonora Basic Pellet Stove Insert - SP23IB

Traditional Look in a Smaller Stove
Impressive Value

Flashing / Surround Sizes:
Medium = 42.5" x 30.125"
Large = 43" x 32"

Standard Features:
Up to 55 hours of heating from one fuel load
Choice of painted legs, gold legs, pedestal, or insert
Automatic fuel feed
Whisper-quiet blowers
Heavy steel construction
Limited lifetime warranty
"Hot Rod" automatic igniter

Specifications*P23I
Flue Outlet:3"
Shipping Weight:235 lbs
Burning Time (3)
(in hours):up to 55
Max BTU Input:45,000
EPA Status (2):Exempt
Hopper Capacity (3):Up to 55 lbs
Approved Installation:Masonry, Zero-clearance, Mobile Home Z-C, Built-in

Dimensions
Width:21" (stove only)
39" (inset)
Depth:22-3/4"
11-1/2" (in fireplace)
Height:20" (stove only)
30" (w/ flashing)
Flashing for Inserts:42X32, 42X30

Clearances
Front (Hearth):6"
Side Wall:9"
Mantel (from Stove):12"

*(1) See owner's manual for details
(2) Tested by EESPC, Kent, WA or Warnock-Hersey, Vancouver, B.C.
(3) Can vary widely depending on pellet size, length, and diameter.
Because Breckwell is always improving our product, specifications are subject to change without notice.
See installation and Operating instructions manual for specifications details.
To avoid personal industry or property damage, these products must be installed, operated and maintained in strict compliance with the instructions packaged with the product.

Click to see the Breckwell Hearth Products P23 Pellet Stove Owners Manual
