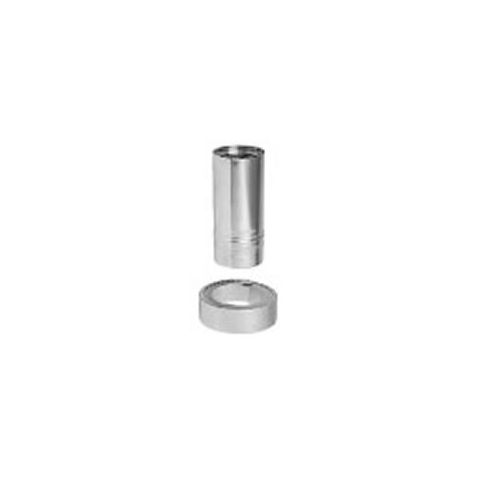

Metal-Fab Corr/Guard 5" Diameter Horizontal Male Termination - Double Wall - 5CGHTM430SS

Corrosion protected and pressure rated Corr/Guard has been a field tested success for many years. Welded seems, close tolerance joints, and a profiled vent closure band secured in place with a top quality gear clamp. Available in both single and double wall, the double wall outer casing is available in aluminized steel, 430 stainless, 304 stainless or 316 stainless. Corr/Guard provides the highest pressure rating in the industry (up to 6" w.g. positive vent pressure), and is UL listed for use with category II, III and IV appliances. Corr/Guard models CGSW (single wall) and CG (double wall) may be used where vent temperatures do not exceed 550F. Corr/Guard clearances to combustibles are based on vent operating temperatures as defined by the appliance. CorrGuard AL294C inner casing / 430SS outer casing

Click to see the Metal-Fab Corr/Guard Installation Single Wall

Click to see the Metal-Fab Corr/Guard Installation Double Wall

Click to see the Metal-Fab Corr/Guard Installation Small Diameter

Click to see the Metal-Fab Corr/Guard Installation Horizontal Terminations

Click to see the Metal-Fab Corr/Guard Installation Addendum

Click to see the Metal-Fab Corr/Guard Warranty Information

Click to see the Metal-Fab Corr/Guard Brochure

Click to see the Metal-Fab Corr/Guard Appliance Adapters

Click to see the Metal-Fab Corr/Guard Specification Sheet

Click to see the Metal-Fab Corr/Guard Tankless Water Heaters

Click to see the Metal-Fab Corr/Guard Tankless Water Heaters Installation

California residents please click on the link for information on Proposition 65 BEFORE purchasing.
