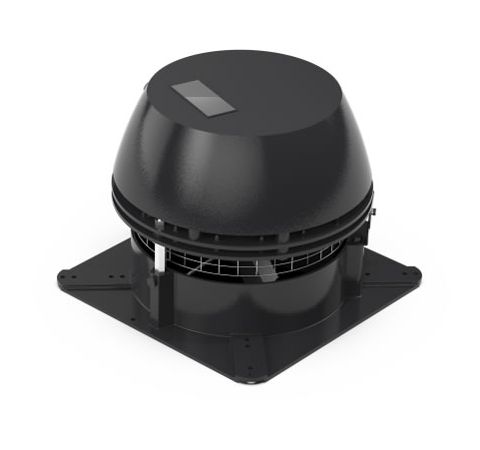

Enervex RS 014 Chimney Exhaust Fan - Horizontal Discharge - 1x120VAC - 1.4A - 1600 RPM - Axial Vane - SKU: 101.0699.1200

The RS Chimney Fan mounts outside the chimney, where it literally sucks the smoke out from the chimney flue.

The chimney fan is designed to disperse the smoke sideways (horizontal) just like a standard chimney cap. The RS is particularly suitable for gas-fired fireplaces and stoves.

Installation is clean and easy - and the fan's compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.

The RS Chimney Fan is specifically designed for applications where efficient operation, low noise level, low energy consumption, variable speed and compact design are of utmost importance. It should be installed at the termination point of the chimney or stack section and can be mounted on masonry or metal chimneys. It is typically mounted in the vertical position, but may be sidewall vented as well.

Features
Quiet Operation
Variable-speed motor
Use with gas-fired appliances
Available in 4 sizes
Complete fan and control packages available from a single manufacturer
Low operating costs
6-months Performance Guarantee

Specifications
Capacities: 0-1,800 CFM (0-3,000 m3/h)
Material: Cast Aluminum Housing and Stainless Steel Axial Vane
Drive: Axial Vane
Motor: Variable Speed, TEFC, Class H
Max. Temp: 575°F (300°C)
Warranty: 2-Year Factory Warranty / 10-Year Warranty Against Corrosion Perforation
Listings: UL 378 Standard for Draft Equipment / UL 705 Standard for Power Ventilators / CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Click to see the Enervex RS 009-016 Chimney Exhaust Fan Brochure (PDF)

Click to see the Enervex RS 009-016 Chimney Fan Manual (PDF)

California residents please click on the link for information on Proposition 65 BEFORE purchasing.

Tags: Enervex, RS 014, RS014, 10106991200, 101.0699.1200
